kubebuilder快速开始

背景

在 Kubernetes 中，部署一个 Deployment 时，通常还需要创建一个 Service 以便外部可以访问这个 Deployment。为了简化这个过程，可以创建一个自定义的 Controller，使其在部署 Deployment 的同时自动创建相应的 Service。

Controller

client-go 组件

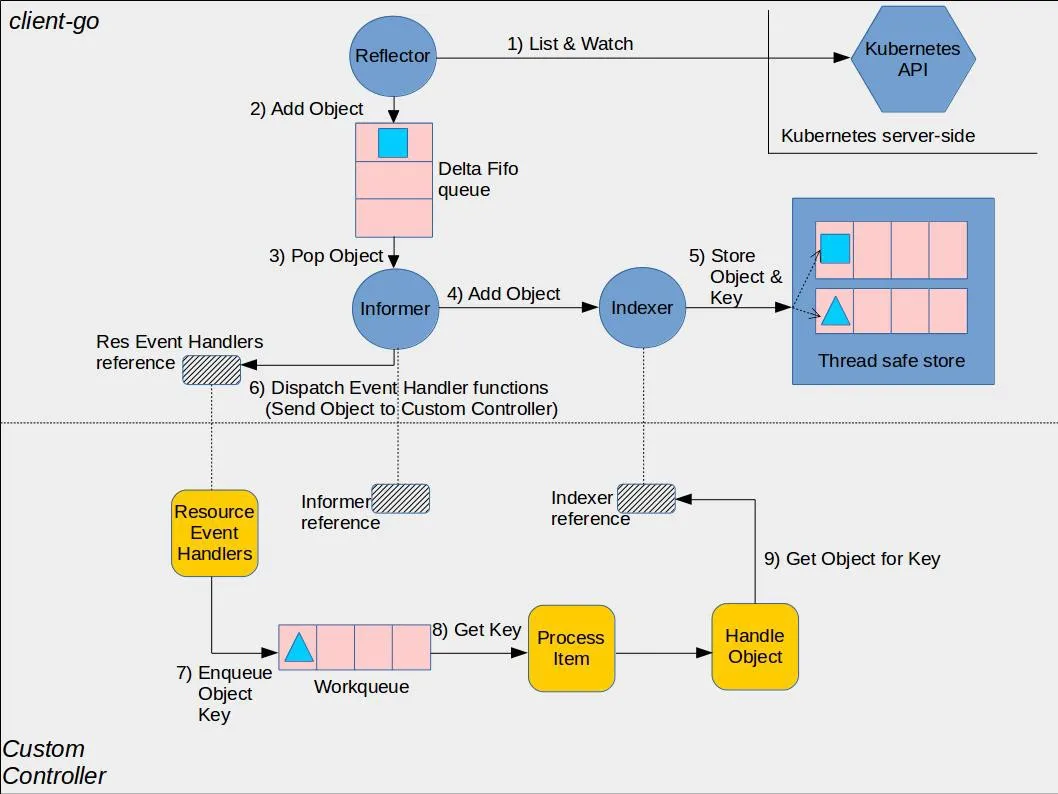

通过图示，可以看到几个核心组件的交互流程，蓝色表示 client-go，黄色是自定义 controller，各组件作用介绍如下：

• Reflector：reflector 用来 watch 特定的 k8s API 资源。具体的实现是通过 ListAndWatch 的方法，watch 可以是 k8s 内建的资源或者是自定义的资源。当 reflector 通过 watch API 接收到有关新资源实例存在的通知时，它使用相应的列表 API 获取新创建的对象，并将其放入 watchHandler 函数内的 Delta FIFO 队列中。
• Informer：informer 从 Delta FIFO 队列中弹出对象。执行此操作的功能是 processLoop。base controller 的作用是保存对象以供以后检索，并调用我们的控制器将对象传递给它。
• Indexer：索引器提供对象的索引功能。典型的索引用例是基于对象标签创建索引。Indexer 可以根据多个索引函数维护索引。Indexer 使用线程安全的数据存储来存储对象及其键。 在 Store 中定义了一个名为 MetaNamespaceKeyFunc 的默认函数，该函数生成对象的键作为该对象的 namespace/name 组合。

自定义 controller 组件

• Informer reference：指的是 Informer 实例的引用，定义如何使用自定义资源对象。自定义控制器代码需要创建对应的 Informer。
• Indexer reference：自定义控制器对 Indexer 实例的引用。自定义控制器需要创建对应的 Indexer。
• Resource Event Handlers：资源事件回调函数，当它想要将对象传递给控制器时，它将被调用。编写这些函数的典型模式是获取调度对象的 key，并将该 key 排入工作队列以进行进一步处理。
• Work queue：任务队列。编写资源事件处理程序函数以提取传递的对象的 key 并将其添加到任务队列。
• Process Item：处理任务队列中对象的函数，这些函数通常使用 Indexer 引用或 Listing 包装器来重试与该 key 对应的对象。

自定义控制器运行原理

• Reflector：通过检测 Kubernetes API 来跟踪资源变化，将变化存入 DeltaFIFO 队列。
• DeltaFIFO：存储和管理 Reflector 发现的资源变化。
• Informer：从 DeltaFIFO 队列中弹出对象，将其存储在 Indexer 中以便检索，并触发事件回调。
• Indexer：提供对象的索引功能，支持根据多个索引函数进行检索。
• ResourceEventHandler：事件回调函数，将对象的 Key 放入工作队列。
• WorkQueue：存储需要处理的对象 Key。
• Controller：从工作队列中获取对象 Key，从 Indexer 中获取对象，处理业务逻辑。

简单的说，整个处理流程大概为：Reflector 通过检测 Kubernetes API 来跟踪该扩展资源类型的变化，一旦发现有变化，就将该 Object 存储队列中，Informer 循环取出该 Object 并将其存入 Indexer 进行检索，同时触发 Callback 回调函数，并将变更的 Object Key 信息放入到工作队列中，此时自定义 Controller 里面的 Process Item 就会获取工作队列里面的 Key，并从 Indexer 中获取 Key 对应的 Object，从而进行相关的业务处理。

环境准备

• go1.21+
• kubebuilder
• kubectl

brew install golang
brew install kubectl
brew install kubebuilder

创建项目

mkdir controller-demo
cd controller-demo
kubebuilder init --domain appservice.com --owner appservice

创建 API

Kubebuilder 注释

概述

在 Kubebuilder 中，使用注释定义自定义资源（CRD）和控制器的元数据。这些注释指导代码生成工具生成正确的 Kubernetes CRD 和控制器逻辑。

注释列表

• // +kubebuilder:object:root=true：声明该类型是自定义资源的根对象。
• // +kubebuilder:subresource:status：启用 status 子资源，用于报告对象的当前状态。
• // +kubebuilder:resource:scope=Cluster：设置资源的范围为集群级（Cluster），而非命名空间级（Namespaced）。
• // +kubebuilder:resource:path=<path>,shortName=<shortName>：设置资源的路径和短名称。
  • 示例：// +kubebuilder:resource:path=guestbooks,shortName=gb
• // +kubebuilder:printcolumn:name=<name>,type=<type>,description=<description>,JSONPath=<jsonpath>：定义 kubectl get 命令输出的额外列。
  • 示例：// +kubebuilder:printcolumn:name="Foo",type="string",description="Foo Field",JSONPath=".spec.foo"
• // +kubebuilder:validation:Minimum=<value>：定义字段的最小值验证。
  • 示例：// +kubebuilder:validation:Minimum=0
• // +kubebuilder:validation:Maximum=<value>：定义字段的最大值验证。
  • 示例：// +kubebuilder:validation:Maximum=100
• // +kubebuilder:validation:Enum=<value1>;...;<valueN>：定义字段的枚举值验证。
  • 示例：// +kubebuilder:validation:Enum="Option1";"Option2";"Option3"
• // +kubebuilder:validation:Pattern=<regex>：定义字段的正则表达式验证。
  • 示例：// +kubebuilder:validation:Pattern="^[a-z0-9]+$"
• // +kubebuilder:default=<value>：设置字段的默认值。
  • 示例：// +kubebuilder:default="default_value"

生成

kubebuilder create api --group batch --version v1 --kind AppService

// AppServiceSpec defines the desired state of AppService
type AppServiceSpec struct {
	Replicas  *int32                      `json:"replicas"`
	Image     string                      `json:"image"`
	Resources corev1.ResourceRequirements `json:"resources,omitempty"`
	Envs      []corev1.EnvVar             `json:"envs,omitempty"`
	Ports     []corev1.ServicePort        `json:"ports,omitempty"`
}

// AppServiceStatus defines the observed state of AppService
type AppServiceStatus struct {
	appsv1.DeploymentStatus `json:",inline"`
}

命令可以确保你的项目中的 Kubernetes 资源定义文件是最新的：

make manifests

设计自定义 controller

Controller 的 Reconcile 如下：

创建资源

• 如果 AppService 实例不存在，则根据 AppServiceSpec 创建
  • 创建 Deployment 资源
  • 创建 Service 资源
• 如果 AppService 实例存在，则将 Annotations 中记录的 Spec 值与当前的 Spec 比较
  • 如果前后的 Spec 不同
    • 更新 Deployment 资源
    • 更新 Service 资源
  • 如果前后的 Spec 相同，则无需额外的操作
  • 判断是否有 Finalizer
    • 没包含相应 Finalizer
      • 增加
    • 包含相应 Finalizer
• 使用 Annotations 记录当前 Spec 的值

删除资源

• 开始删除处理：表示流程的起始点。
• 检查 DeletionTimestamp 是否为空：判断资源是否被标记为删除。
  • 是：如果 DeletionTimestamp 为空，表示资源未被标记为删除，流程结束。
  • 否：如果 DeletionTimestamp 非空，继续检查是否有 Finalizer。
• 检查是否包含 Finalizer：判断资源是否包含特定的 Finalizer。
  • 是：如果包含，调用 deleteAssociatedResources 方法删除关联资源。
    • 成功：如果删除关联资源成功，接下来移除 Finalizer。
    • 失败：如果删除关联资源时发生错误，返回错误信息。
  • 否：如果不包含 Finalizer，没有需要执行的删除操作，流程结束。
• 移除 Finalizer：将 Finalizer 从资源中移除。
• 使用 Patch 更新实例：通过 Patch 方法更新实例，主要是移除了 Finalizer。

package controller

import (
	"context"
	"reflect"
	"slices"

	"k8s.io/apimachinery/pkg/util/sets"

	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
	"k8s.io/apimachinery/pkg/api/errors"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime/schema"
	"k8s.io/apimachinery/pkg/util/json"

	batchv1 "appservice.com/api/v1"
	"k8s.io/apimachinery/pkg/runtime"
	ctrl "sigs.k8s.io/controller-runtime"
	"sigs.k8s.io/controller-runtime/pkg/client"
)

const (
	finalizerName = "appservice.batch.appservice.com"
	spec          = "spec"
)

// AppServiceReconciler reconciles a AppService object
type AppServiceReconciler struct {
	client.Client
	Scheme *runtime.Scheme
}

//+kubebuilder:rbac:groups=batch.appservice.com,resources=appservices,verbs=get;list;watch;create;update;patch;delete
//+kubebuilder:rbac:groups=batch.appservice.com,resources=appservices/status,verbs=get;update;patch
//+kubebuilder:rbac:groups=batch.appservice.com,resources=appservices/finalizers,verbs=update

// Reconcile is part of the main kubernetes reconciliation loop which aims to
// move the current state of the cluster closer to the desired state.
// TODO(user): Modify the Reconcile function to compare the state specified by
// the AppService object against the actual cluster state, and then
// perform operations to make the cluster state reflect the state specified by
// the user.
//
// For more details, check Reconcile and its Result here:
// - https://pkg.go.dev/sigs.k8s.io/controller-runtime@v0.17.0/pkg/reconcile
func (r *AppServiceReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
	instance := &batchv1.AppService{}
	if err := r.Client.Get(ctx, req.NamespacedName, instance); err != nil {
		if errors.IsNotFound(err) {
			return ctrl.Result{}, nil
		}
		return ctrl.Result{}, err
	}
	if instance.DeletionTimestamp.IsZero() {
		if slices.Contains(instance.Finalizers, finalizerName) {
			if err := r.deleteAssociatedResources(ctx, instance); err != nil {
				return ctrl.Result{}, err
			}
			// 回收成功 删除finalize
			merge := client.MergeFrom(instance.DeepCopy())
			instance.Finalizers = sets.NewString(instance.Finalizers...).Delete(finalizerName).UnsortedList()
			if err := r.Client.Patch(ctx, instance, merge); err != nil {
				return ctrl.Result{}, err
			}
		}
		return ctrl.Result{}, nil
	}
	deployment := &appsv1.Deployment{}
	// 1. 不存在，则创建
	if err := r.Client.Get(ctx, req.NamespacedName, deployment); err != nil {
		// 如果不是不存在报错 返回
		if !errors.IsNotFound(err) {
			return ctrl.Result{}, err
		}
		// 1.不存在 则创建deployment
		deployment = NewDeployment(instance)
		if err := r.Client.Create(ctx, deployment); err != nil {
			return ctrl.Result{}, err
		}
		// 2.创建 Service
		svc := NewService(instance)
		if err := r.Client.Create(ctx, svc); err != nil {
			return ctrl.Result{}, err
		}
	} else {
		// 2. 存在，则对比spec
		// 保留spec到oldSpec
		oldSpec := &batchv1.AppServiceSpec{}
		if err := json.Unmarshal([]byte(instance.Annotations[spec]), oldSpec); err != nil {
			return ctrl.Result{}, err
		}
		if instance.Annotations == nil{
			instance.Annotations = map[string]string{}
		}
		if !reflect.DeepEqual(instance.Spec, *oldSpec) {
			newDeployment := NewDeployment(instance)
			currDeployment := &appsv1.Deployment{}
			if err := r.Client.Get(ctx, req.NamespacedName, currDeployment); err != nil {
				return ctrl.Result{}, err
			}
			currDeployment.Spec = newDeployment.Spec
			if err := r.Client.Update(ctx, currDeployment); err != nil {
				return ctrl.Result{}, err
			}

			newService := NewService(instance)
			currService := &corev1.Service{}
			if err := r.Client.Get(ctx, req.NamespacedName, currService); err != nil {
				return ctrl.Result{}, err
			}

			currIP := currService.Spec.ClusterIP
			currService.Spec = newService.Spec
			currService.Spec.ClusterIP = currIP
			if err := r.Client.Update(ctx, currService); err != nil {
				return ctrl.Result{}, err
			}
		}
	}
	if !slices.Contains(instance.Finalizers, finalizerName) {
		merge := client.MergeFrom(instance.DeepCopy())
		instance.Finalizers = append(instance.Finalizers, finalizerName)
		if err := r.Client.Patch(ctx, instance, merge); err != nil {
			return ctrl.Result{}, err
		}
	}
	// 3. 关联 Annotations
	data, _ := json.Marshal(instance.Spec)
	if instance.Annotations != nil {
		instance.Annotations[spec] = string(data)
	} else {
		instance.Annotations = map[string]string{spec: string(data)}
	}
	if err := r.Client.Update(ctx, instance); err != nil {
		return ctrl.Result{}, err
	}
	return ctrl.Result{}, nil
}

// SetupWithManager sets up the controller with the Manager.
func (r *AppServiceReconciler) SetupWithManager(mgr ctrl.Manager) error {
	return ctrl.NewControllerManagedBy(mgr).
		For(&batchv1.AppService{}).
		Complete(r)
}

// controllers/appservice_controller.go
func NewDeployment(app *batchv1.AppService) *appsv1.Deployment {
	labels := map[string]string{"app": app.Name}
	selector := &metav1.LabelSelector{MatchLabels: labels}
	return &appsv1.Deployment{
		TypeMeta: metav1.TypeMeta{
			APIVersion: "apps/v1",
			Kind:       "Deployment",
		},
		ObjectMeta: metav1.ObjectMeta{
			Name:      app.Name,
			Namespace: app.Namespace,
			OwnerReferences: []metav1.OwnerReference{
				*metav1.NewControllerRef(app, schema.GroupVersionKind{
					Group:   batchv1.GroupVersion.Group,
					Version: batchv1.GroupVersion.Version,
					Kind:    app.Kind,
				}),
			},
		},
		Spec: appsv1.DeploymentSpec{
			Replicas: app.Spec.Replicas,
			Selector: selector,
			Template: corev1.PodTemplateSpec{
				ObjectMeta: metav1.ObjectMeta{
					Labels: labels,
				},
				Spec: corev1.PodSpec{Containers: newContainer(app)},
			},
		},
	}
}

// controllers/appservice_controller.go
func newContainer(app *batchv1.AppService) []corev1.Container {
	containerPorts := []corev1.ContainerPort{}
	for _, svcPort := range app.Spec.Ports {
		cport := corev1.ContainerPort{}
		cport.ContainerPort = svcPort.TargetPort.IntVal
		containerPorts = append(containerPorts, cport)
	}
	return []corev1.Container{
		{
			Name:            app.Name,
			Image:           app.Spec.Image,
			Resources:       app.Spec.Resources,
			Ports:           containerPorts,
			ImagePullPolicy: corev1.PullIfNotPresent,
			Env:             app.Spec.Envs,
		},
	}
}

// controllers/appservice_controller.go
func NewService(app *batchv1.AppService) *corev1.Service {
	return &corev1.Service{
		TypeMeta: metav1.TypeMeta{
			Kind:       "Service",
			APIVersion: "v1",
		},
		ObjectMeta: metav1.ObjectMeta{
			Name:      app.Name,
			Namespace: app.Namespace,
			OwnerReferences: []metav1.OwnerReference{
				*metav1.NewControllerRef(app, schema.GroupVersionKind{
					Group:   batchv1.GroupVersion.Group,
					Version: batchv1.GroupVersion.Version,
					Kind:    app.Kind,
				}),
			},
		},
		Spec: corev1.ServiceSpec{
			Type:  corev1.ServiceTypeNodePort,
			Ports: app.Spec.Ports,
			Selector: map[string]string{
				"app": app.Name,
			},
		},
	}
}

func (r *AppServiceReconciler) deleteAssociatedResources(ctx context.Context, app *batchv1.AppService) error {
	deployment := &appsv1.Deployment{}
	// 没有err，说明找到了deployment，需要删除
	if err := r.Client.Get(ctx, client.ObjectKey{Name: app.Name, Namespace: app.Namespace}, deployment); err == nil {
		if err := r.Client.Delete(ctx, deployment); err != nil {
			return err
		}
	}

	svc := &corev1.Service{}
	// 没有err，说明找到了service，需要删除
	if err := r.Client.Get(ctx, client.ObjectKey{Name: app.Name, Namespace: app.Namespace}, svc); err == nil {
		if err := r.Client.Delete(ctx, svc); err != nil {
			return err
		}
	}
	return nil
}

Webhook

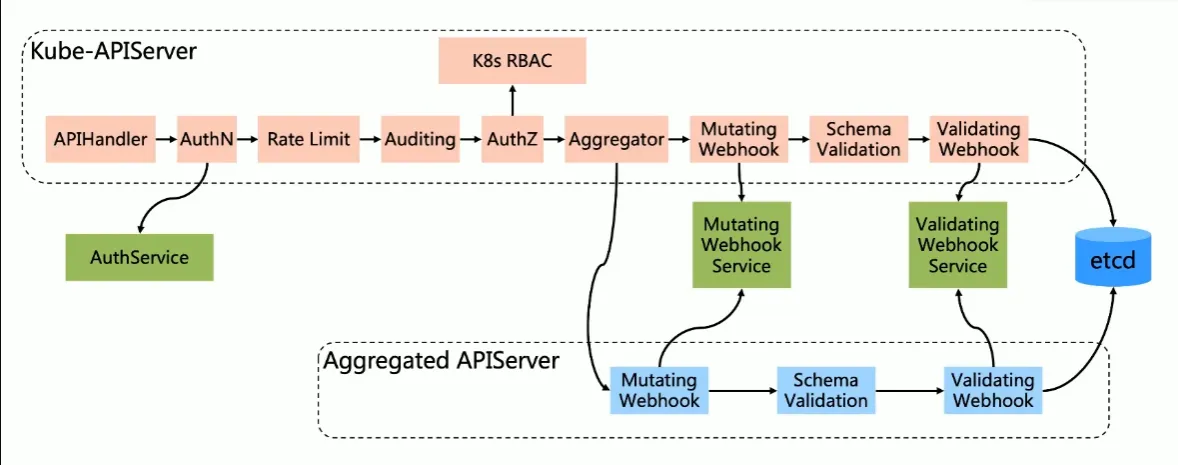

自定义 webhook 运行原理

Webhook 是 HTTP 回调，它接收许可请求，处理这些请求并返回许可响应。

Kubernetes 提供以下类型的许可 Webhook：

• Mutating Admission Webhook：该 Webhook 可接受或拒绝对象请求，并且可能变更对象。
• ValidatingAdmission Webhook：该 Webhook 可在不更改对象的情况下接受或拒绝对象请求。

创建 webhook

kubebuilder create webhook --group batch --version v1 --kind AppService --defaulting --programmatic-validation

// MutatingWebhook
func (r *AppService) Default() {
	appservicelog.Info("default", "name", r.Name)
}
// ValidatingWebhook
var _ webhook.Validator = &AppService{}

// ValidateCreate implements webhook.Validator so a webhook will be registered for the type
func (r *AppService) ValidateCreate() (admission.Warnings, error) {
	appservicelog.Info("validate create", "name", r.Name)

	// TODO(user): fill in your validation logic upon object creation.
	return nil, nil
}

// ValidateUpdate implements webhook.Validator so a webhook will be registered for the type
func (r *AppService) ValidateUpdate(old runtime.Object) (admission.Warnings, error) {
	appservicelog.Info("validate update", "name", r.Name)

	// TODO(user): fill in your validation logic upon object update.
	return nil, nil
}

// ValidateDelete implements webhook.Validator so a webhook will be registered for the type
func (r *AppService) ValidateDelete() (admission.Warnings, error) {
	appservicelog.Info("validate delete", "name", r.Name)

	// TODO(user): fill in your validation logic upon object deletion.
	return nil, nil
}

Mutatingwebhook

例如想在上面的自定义的controller添加新的功能,例如:检验image是否有版本号，如果不存在就给他添加:leaest 。 修改代码如下:

const (
	colon        = ":"
	leastVersion = ":least"
	versionReg   = `^\d+\.\d+\.\d+$`
)
func (r *AppService) Default() {
	appservicelog.Info("default", "name", r.Name)
	if r.DeletionTimestamp.IsZero() {
		return
	}
	// 检查 Image 字段的最后一部分是否包含冒号（版本号）
	if lastColon := strings.LastIndex(r.Spec.Image, colon); lastColon == -1 {
		// 如果没有冒号，说明没有版本号，添加 ":latest"
		r.Spec.Image += leastVersion
	} else {
		// 从最后一个冒号位置开始检查是否有合法的版本号
		versionPart := r.Spec.Image[lastColon+1:]
		if !isValidVersion(versionPart) {
			r.Spec.Image += leastVersion
		}
	}
}
func isValidVersion(version string) bool {
	// 检查是否符合语义版本格式，例如 "1.0.0"
	matched, err := regexp.MatchString(versionReg, version)
	if err != nil {
		return false
	}
	return matched
}

Validtatingwebhook

var (
	defaultReplicas = int32(1)
)
func (r *AppService) ValidateCreate() (admission.Warnings, error) {
	appservicelog.Info("validate create", "name", r.Name)
	if !checkSpecReplicas(r.Spec.Replicas) {
		r.Spec.Replicas = &defaultReplicas
	}
	return nil, nil
}

// ValidateUpdate implements webhook.Validator so a webhook will be registered for the type
func (r *AppService) ValidateUpdate(old runtime.Object) (admission.Warnings, error) {
	appservicelog.Info("validate update", "name", r.Name)
	if !checkSpecReplicas(r.Spec.Replicas) {
		r.Spec.Replicas = &defaultReplicas
	}
	return nil, nil
}

// ValidateDelete implements webhook.Validator so a webhook will be registered for the type
func (r *AppService) ValidateDelete() (admission.Warnings, error) {
	appservicelog.Info("validate delete", "name", r.Name)

	// TODO(user): fill in your validation logic upon object deletion.
	return nil, nil
}
func checkSpecReplicas(i *int32) bool {
	if i == nil {
		return false // 添加了对 nil 指针的检查
	}
	if *i < 0 {
		return false
	}
	return true
}

添加证书

首先需要在cmd/main.go中增加cert路径：

webhookServer := webhook.NewServer(webhook.Options{
	TLSOpts: tlsOpts,
	CertDir: "./cert",
})

生成证书脚本：

echo "根证书私钥"
openssl genrsa -out ca/private.key 2048

echo "根证书"
openssl req -new -x509 -days 36500 -key ca/private.key -out ca/public.crt  -config ca/fd.cnf

echo "服务器私钥"
openssl genrsa -out server/private.key 2048

echo "创建服务器证书csr"
openssl req -new -config server/fd.cnf  -key server/private.key -out server/fd.csr

echo "创建服务器证书"
openssl x509 -req -days 36500  -CA ca/public.crt -CAkey ca/private.key -set_serial 01 -in server/fd.csr -out server/public.crt -extfile server/fd.cnf -extensions SAN

mv ca/public.crt ca.crt
mv server/public.crt tls.crt
mv server/private.key tls.key

修改下面ca和server配置,将webhook-service改成你的。

[req]
prompt = no
distinguished_name = dn
[dn]
emailAddress = adsad@sda.com
C = CN
ST =
L =
O =
OU =
CN =
[SAN]
extendedKeyUsage=serverAuth
subjectAltName=@alt_name
[alt_name]
DNS.0 =

将tls.crt和tls.key放到cert目录下,然后将tls.crt base64编码后放入caBundle。

apiVersion: admissionregistration.k8s.io/v1
kind: MutatingWebhookConfiguration
metadata:
  name: controller-mutate-admission-demo
webhooks:
  - admissionReviewVersions:
      - v1
    clientConfig:
      caBundle: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURyakNDQXBZQ0NRQ0YvNDNxSGdjUTZ6QU5CZ2txaGtpRzl3MEJBUXNGQURDQmx6RWNNQm9HQ1NxR1NJYjMKRFFFSkFSWU5ZV1J6WVdSQWMyUmhMbU52YlRFTE1Ba0dBMVVFQmhNQ1EwNHhFVEFQQmdOVkJBZ01DRnBvWldwcApZVzVuTVJFd0R3WURWUVFIREFoSVlXNW5XbWh2ZFRFVk1CTUdBMVVFQ2d3TWFHRnliVzl1ZVdOc2IzVmtNUkF3CkRnWURWUVFMREFkemEzbDJhV1YzTVJzd0dRWURWUVFEREJKdmJIbHRjSFZ6TFdOdmJuUnliMnhzWlhJd0lCY04KTWpRd056STFNRGd6T1RRNFdoZ1BNakV5TkRBM01ERXdPRE01TkRoYU1JR1hNUnd3R2dZSktvWklodmNOQVFrQgpGZzFoWkhOaFpFQnpaR0V1WTI5dE1Rc3dDUVlEVlFRR0V3SkRUakVSTUE4R0ExVUVDQXdJV21obGFtbGhibWN4CkVUQVBCZ05WQkFjTUNFaGhibWRhYUc5MU1SVXdFd1lEVlFRS0RBeG9ZWEp0YjI1NVkyeHZkV1F4RURBT0JnTlYKQkFzTUIzTnJlWFpwWlhjeEd6QVpCZ05WQkFNTUVtOXNlVzF3ZFhNdFkyOXVkSEp2Ykd4bGNqQ0NBU0l3RFFZSgpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFOeGgyZE05aXZUL1dXOFBqU3BwQXNSMUdlcFNXS3ZoCm1oUjJlTmRNODVSQVlxV2ZIS1oyeTBiNWZhMEV3cmFQWWg3OFF6WnBXUDVJeUEweXIzTzZWTlJ0RUNMcGQvdkUKSEhqRWhrNStLTG12S0pRaEt5anZJV0FQeGp6QS9BOE5WQVMwdlVEZ3IyUkZLZzNRZXpSVGhhc0Q3Y1NXa0gxbQpPVFdaSVg4dzkxaWpQTW1kS1ZlYk5nNkR2aFdmK0tydVVvWTVmaENoRWxDWXRRdXpZaWVuT2tFTXMwbmVFaDduCmNvNFpabERpOUtCUW5kNXJnVEpHemFJSUZmSmFVTFoyOHZaSlZ1MXdBUTBsSW5idjBPOXVtR0llYmVGNnpDTW4KZ3hCcXpuakN3bXI0MVg5UHRJWlhsVjg4ai9sU2RSVFlWbEpvQ1J2SVpFRDEvR3JYZkllMEpta0NBd0VBQVRBTgpCZ2txaGtpRzl3MEJBUXNGQUFPQ0FRRUFzNGFZWDc3RG1YQ1F5SVQrRXU2NmI2TjJpcTlsZUFhMmN3QjVzZHliCkJtNUZNditseExNVUx1MFJ5RFcvQUk0OFNHZFJ3KzRGY0s1UTdSeFVKZUZtM3B0V0FTV0FKVFVqTjNDNEdYWlcKd1ZrTXpwUFgvTE5CbnpQVUcxLzl6eDdid0ZBZUUxQ2I5R2xyRUFaMmtWYW1FSVVLVFY1b0VNQTI4RG1WdDlEeApmNXF3UlhMSGRkRmF4bnFmSlNRSjVqK21heDRFUXhXOWZ5dXhWR1VNVGdQMGxKaW9LenluV2xFOG1oeFZEYzVtCm1vcFk5Ryt2ZHhqdUFDUm5ZZi8wcmRnWWk0dWpPL2FyTUk2eEZqcWlmaWM1STdXcU9YNTZGYzdHalBncFVlSHcKaEQ0dG1pZ0ZIVi80ZUtCWWJ5Q1NWRzRJUUhIaTFVa3JHRjA5MDRnY3VFMHk0QT09Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
      service:
        name: webhook-service
        namespace: caas-system
        path: /mutate-batch-appservice-com-v1-appservice
        port: 9443
    failurePolicy: Fail
    matchPolicy: Equivalent
    name: mutating.batch.appservice.com.appservices
    reinvocationPolicy: Never
    rules:
      - apiGroups:
          - "batch.appservice.com"
        apiVersions:
          - "*"
        operations:
          - CREATE
          - UPDATE
        resources:
          - appservices
        scope: '*'
    sideEffects: None
    timeoutSeconds: 30
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  name: controller-demo-validating
webhooks:
  - admissionReviewVersions:
      - v1
    clientConfig:
      caBundle: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURyakNDQXBZQ0NRQ0YvNDNxSGdjUTZ6QU5CZ2txaGtpRzl3MEJBUXNGQURDQmx6RWNNQm9HQ1NxR1NJYjMKRFFFSkFSWU5ZV1J6WVdSQWMyUmhMbU52YlRFTE1Ba0dBMVVFQmhNQ1EwNHhFVEFQQmdOVkJBZ01DRnBvWldwcApZVzVuTVJFd0R3WURWUVFIREFoSVlXNW5XbWh2ZFRFVk1CTUdBMVVFQ2d3TWFHRnliVzl1ZVdOc2IzVmtNUkF3CkRnWURWUVFMREFkemEzbDJhV1YzTVJzd0dRWURWUVFEREJKdmJIbHRjSFZ6TFdOdmJuUnliMnhzWlhJd0lCY04KTWpRd056STFNRGd6T1RRNFdoZ1BNakV5TkRBM01ERXdPRE01TkRoYU1JR1hNUnd3R2dZSktvWklodmNOQVFrQgpGZzFoWkhOaFpFQnpaR0V1WTI5dE1Rc3dDUVlEVlFRR0V3SkRUakVSTUE4R0ExVUVDQXdJV21obGFtbGhibWN4CkVUQVBCZ05WQkFjTUNFaGhibWRhYUc5MU1SVXdFd1lEVlFRS0RBeG9ZWEp0YjI1NVkyeHZkV1F4RURBT0JnTlYKQkFzTUIzTnJlWFpwWlhjeEd6QVpCZ05WQkFNTUVtOXNlVzF3ZFhNdFkyOXVkSEp2Ykd4bGNqQ0NBU0l3RFFZSgpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFOeGgyZE05aXZUL1dXOFBqU3BwQXNSMUdlcFNXS3ZoCm1oUjJlTmRNODVSQVlxV2ZIS1oyeTBiNWZhMEV3cmFQWWg3OFF6WnBXUDVJeUEweXIzTzZWTlJ0RUNMcGQvdkUKSEhqRWhrNStLTG12S0pRaEt5anZJV0FQeGp6QS9BOE5WQVMwdlVEZ3IyUkZLZzNRZXpSVGhhc0Q3Y1NXa0gxbQpPVFdaSVg4dzkxaWpQTW1kS1ZlYk5nNkR2aFdmK0tydVVvWTVmaENoRWxDWXRRdXpZaWVuT2tFTXMwbmVFaDduCmNvNFpabERpOUtCUW5kNXJnVEpHemFJSUZmSmFVTFoyOHZaSlZ1MXdBUTBsSW5idjBPOXVtR0llYmVGNnpDTW4KZ3hCcXpuakN3bXI0MVg5UHRJWlhsVjg4ai9sU2RSVFlWbEpvQ1J2SVpFRDEvR3JYZkllMEpta0NBd0VBQVRBTgpCZ2txaGtpRzl3MEJBUXNGQUFPQ0FRRUFzNGFZWDc3RG1YQ1F5SVQrRXU2NmI2TjJpcTlsZUFhMmN3QjVzZHliCkJtNUZNditseExNVUx1MFJ5RFcvQUk0OFNHZFJ3KzRGY0s1UTdSeFVKZUZtM3B0V0FTV0FKVFVqTjNDNEdYWlcKd1ZrTXpwUFgvTE5CbnpQVUcxLzl6eDdid0ZBZUUxQ2I5R2xyRUFaMmtWYW1FSVVLVFY1b0VNQTI4RG1WdDlEeApmNXF3UlhMSGRkRmF4bnFmSlNRSjVqK21heDRFUXhXOWZ5dXhWR1VNVGdQMGxKaW9LenluV2xFOG1oeFZEYzVtCm1vcFk5Ryt2ZHhqdUFDUm5ZZi8wcmRnWWk0dWpPL2FyTUk2eEZqcWlmaWM1STdXcU9YNTZGYzdHalBncFVlSHcKaEQ0dG1pZ0ZIVi80ZUtCWWJ5Q1NWRzRJUUhIaTFVa3JHRjA5MDRnY3VFMHk0QT09Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
      service:
        name: webhook-service
        namespace: caas-system
        path: /validate-batch-appservice-com-v1-appservice
        port: 9443
    failurePolicy: Fail
    matchPolicy: Equivalent
    name: validating.batch.appservice.com.appservices
    rules:
      - apiGroups:
          - "batch.appservice.com"
        apiVersions:
          - "*"
        operations:
          - CREATE
          - UPDATE
        resources:
          - appservices
        scope: '*'
    sideEffects: None
    timeoutSeconds: 30

测试

修改 Dockerfile

# Build the manager binary
FROM golang:1.22 AS builder
ARG TARGETOS
ARG TARGETARCH

WORKDIR /workspace
# Copy the Go Modules manifests
COPY go.mod go.mod
COPY go.sum go.sum
COPY vendor vendor
# Copy the go source
COPY cmd/main.go cmd/main.go
COPY api/ api/
COPY internal/controller/ internal/controller/


# Build
# the GOARCH has not a default value to allow the binary be built according to the host where the command
# was called. For example, if we call make docker-build in a local env which has the Apple Silicon M1 SO
# the docker BUILDPLATFORM arg will be linux/arm64 when for Apple x86 it will be linux/amd64. Therefore,
# by leaving it empty we can ensure that the container and binary shipped on it will have the same platform.
RUN CGO_ENABLED=0 GOOS=${TARGETOS:-linux} GOARCH=${TARGETARCH} go build -mod=vendor -a -o manager cmd/main.go

# Use distroless as minimal base image to package the manager binary
# Refer to https://github.com/GoogleContainerTools/distroless for more details
FROM alpine:3.18
WORKDIR /
COPY --from=builder /workspace/manager .
USER 65532:65532
COPY cert cert

ENTRYPOINT ["/manager"]

deploy.yaml

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: controller-demo-sa
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: controller-demo
spec:
  selector:
    matchLabels:
      app: controller-demo
  template:
    metadata:
      labels:
        app: controller-demo
    spec:
      serviceAccountName: controller-demo-sa
      containers:
        - name: controller-demo
          image: controller-demo:latest
          imagePullPolicy: Always
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: controller-demo-role
rules:
  - apiGroups:
      - "batch.appservice.com"
    resources:
      - appservices
    verbs:
      - get
      - list
      - create
      - delete
      - update
      - patch
  - apiGroups:
      - "apps"
    resources:
      - deployments
    verbs:
      - get
      - list
      - create
      - delete
      - update
      - patch
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - create
      - delete
      - update
      - patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: controller-demo-rolebinding
subjects:
  - kind: ServiceAccount
    name: controller-demo-sa
    namespace: caas-system
roleRef:
  kind: ClusterRole
  name: controller-demo-role
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: v1
kind: Service
metadata:
  name: webhook-service
spec:
  selector:
    app: controller-demo
  ports:
    - port: 9443
      targetPort: 9443
      protocol: TCP
      name: controller-demo

make install
make run
kubectl apply -f nginx.yaml

总结

使用kubebuilder只需要关注todo:

• 在使用controller更新字段，建议使用patch来更新
• 在使用webhook的时候需要注意证书

项目地址
